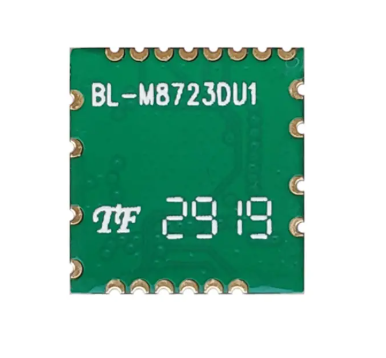

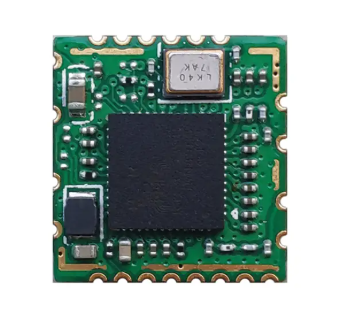

M8723DU1 1T1R 802.11b/g/n WiFi+BT4.2 Module

Compact Dual Band 2.4G Wi-Fi Module with Low Power Consumption for Android and Home Use

Introduction

BL-M8723DU1 is a highly integrated single-band WLAN + Bluetooth v4.2 Combo USB Module. It compatible IEEE802.11b/g/n standard and provides the maximum PHY rate up to 150Mbps. Supports Bluetooth dual mode with BT v2.1/v4.2 compliant,offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective, high throughput from an extended distance.

Features

• Operating Frequencies: 2.4~2.4835GHz
• Complies with USB2.0 for WLAN and BT controller
• IEEE Standards: IEEE 802.11b/g/n
• Wireless PHY data rate can reach up to 150Mbps
• Bluetooth v4.2 Dual Mode support Simultaneous LE and BR / EDR
• Connect to external antenna through half hole

Block Diagram

General Specifications

Product Dimension

Module dimension: 12.9*12.2*1.8mm (L*W*H; Tolerance: ±0.15mm)
