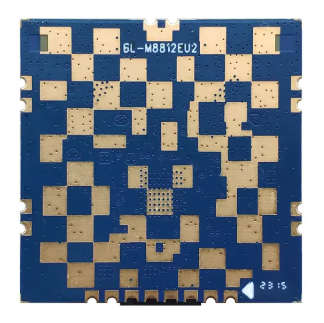

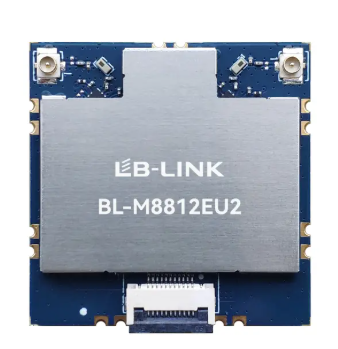

M8812EU2 2T2R 802.11a/n/ac WiFi Module

Introduction

BL-M8812EU2 is a highly integrated 5G single band high-power wireless module base on RTL8812EU, which combines a USB interface, a WLAN MAC, a 2T2R capable Base Band and Radio. It supports IEEE 802.11a/n/ac standard and provides the highest PHY rate up to 867Mbps. The module has built-in high-power FEM and supports 10MHz narrow bandwidth channel, significantly extending the WLAN communication distance, ideal for long-range wireless video transmission applications such as IP camera and UAV.

Features

• Operating Frequency: 5.15~5.85GHz
• IEEE Standards: IEEE 802.11a/n/ac
• Support 2T2R mode with 10/20/40/80MHz bandwidth
• WLAN PHY rate can reach up to 867Mbps
• Connect to external antennas through IPEX connectors
• Host Interface is USB 2.0
• Single DC 5V Power SupplyBlock Diagram



  • General Specifications

    Module Name	BL-M8812EU2
    Chipset	Realtek RTL8812EU-CG
    WLAN Standards	IEEE 802.11a/n/ac
    Host Interface	USB 2.0
    Antenna	Connect to the external antennas through IPEX connectors
    Dimension	32.0*32.0*3.4mm (L*W*H)
    Power Supply	DC 5.0V±0.25V   @1800mA (Max)
    Operation Temperature	-20℃ to +70℃
    Operation Humidity	10% to 95% RH (Non-Condensing)

    Product Dimension



    Module dimension: 32.0mm*32.0mm*3.4mm（L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H）

    IPEX / MHF-1 connector dimension: 3.0*2.6*1.2mm (L*W*H, Ø2.0mm)
