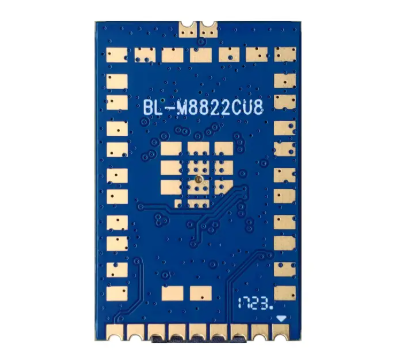

- BL-M8822CU8
- LB-LINK
- V5.0
- REALTEK
- 2T2R
- USB2.0 Interface
5G Wi-Fi Module with Smart Remote Control, Bluetooth, and Long Range
Introduction
BL-M8822CU8 is a highly integrated 5G band WLAN + Bluetooth v5.0 Combo module. It combines a controller with USB device interface, a WLAN MAC, a 2T2R capable WLAN base band and a WLAN radio. This module compatible IEEE 802.11a/n/ac standard and provides the highest PHY rate up to 867Mbps, It can offer feature-rich wireless connectivity and reliable throughput from an extended distance.
Features
Operating Frequencies: 2.4~2.4835GHz and 5.15~5.85GHz
IEEE Standards: IEEE 802.11a/n/ac
WLAN PHY rate can reach up to 867Mbps
Support BT Classic / BT Low Energy dual mode
Lower PHY rate can set higher TX RF Power
Connect to external antennas through IPEX
Host Interface is USB2.0
Main Power Supply: DC 3.3V±0.2V
Block Diagram
General Specifications
Product Dimension
Module dimension: 31.0mm*20.0mm*3.5mm （L*W*H ; Tolerance: ±0.15mm）
IPEX / MHF-1 connector dimension: 3.0*2.6*1.2mm (L*W*H, Ø2.0mm)
