5G Wi-Fi Module M8811CU2 2T2R 802.11a/b/g/n/ac WiFi Module

Long Range 5G Wi-Fi Module with Dual Core, Anti-UAV, and Arduino Support

Introduction

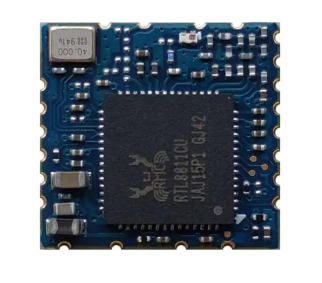

BL-M8811CU2 is a highly integrated dual-band WLAN module base on RTL8811CU, which combines WLAN MAC, 1T1R Baseband and Radio in single chip. It compatible IEEE 802.11a/b/g/n/ac standard and supports Maximum PHY rate up to 433Mbps. The module provides excellent WLAN performance and lower cost ideal for wireless network applications such as Smart TV, OTT boxes, IP cameras, LED projectors.

Features

Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz

Host Interface is USB2.0

IEEE standard: IEEE 802.11a/b/g/n/ac

Wireless PHY rate up to 433Mbps

Connect to external antenna through half hole

DC 3.3V±0.2V main power supply

Block Diagram

General Specifications

Product Dimension

Module dimension: 12.9*12.2*1.7mm(L*W; Tolerance:  +0.3/-0.10mm)

Module dimension: 12.9*12.2*1.7mm(H; Tolerance:  ±0.2mm)
