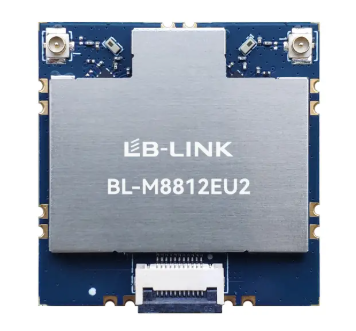

- BL-M8812EU2
- LB-LINK
- Without BT
- REALTEK
- 2T2R
- USB2.0 Interface
- Wi-Fi 5 (802.11ac)
Introduction
BL-M8812EU2 is a highly integrated 5G single band high-power wireless module base on RTL8812EU, which combines a USB interface, a WLAN MAC, a 2T2R capable Base Band and Radio. It supports IEEE 802.11a/n/ac standard and provides the highest PHY rate up to 867Mbps. The module has built-in high-power FEM and supports 10MHz narrow bandwidth channel, significantly extending the WLAN communication distance, ideal for long-range wireless video transmission applications such as IP camera and UAV.
Features
- Operating Frequency: 5.15~5.85GHz
- IEEE Standards: IEEE 802.11a/n/ac
- Support 2T2R mode with 10/20/40/80MHz bandwidth
- WLAN PHY rate can reach up to 867Mbps
- Connect to external antennas through IPEX connectors
- Host Interface is USB 2.0
- Single DC 5V Power Supply
Block Diagram
General Specifications
Product Dimension
Module dimension: 32.0mm*32.0mm*3.4mm（L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H）
IPEX / MHF-1 connector dimension: 3.0*2.6*1.2mm (L*W*H, Ø2.0mm)
