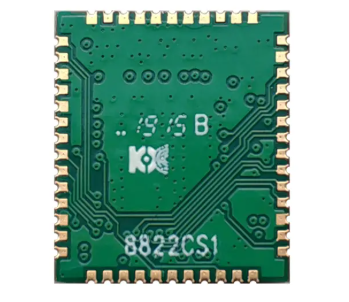

- BL-M8822CS1-S
- LB-LINK
- V5.0
- REALTEK
- 2T2R
- Wi-Fi:SDIO BT:UART
Introduction
BL-M8822CS1-S is a highly integrated dual band WLAN+Bluetooth v5.0 combo module, It combines a 2T2R Dual-band WLAN subsystem and a Bluetooth v5.0 subsystem which features dual BT controllers. The module is compatible with IEEE 802.11a/b/g/n/ac standard and provides the maximum PHY rate up to 867Mbps, it supports BT/BLE dual mode with BT v5.0/4.2/2.1 compliant,offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance
Features
- Operating Frequencies: 2.4~2.4835GHz or 5. 15~5.85GHz
- Host Interface is SDIO (SDIO 1. 1/2.0/3.0) and UART for BT
- IEEE Standards: IEEE 802. 11a/b/g/n/ac
- Wireless PHY rate can reach up to 867Mbps
- Bluetooth Specification: v5.0/4.2/3.0/2.1 system
- Power Supply: DC 3.3V main power and 1.8V/3.3V I/O power
Block Diagram
General Specifications
Product Dimension
Module dimension: Typical (L*W*H): 15.1*13.1*2.4mm Tolerance: +/-0.15mm
