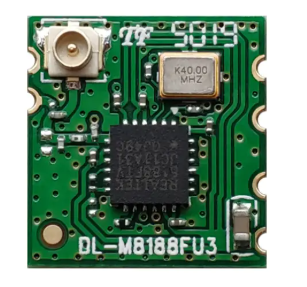

M8188FU3 1T1R 802.11b/g/n WiFi Module

Introduction

BL-M8188FU3(VQ1) is a highly integrated 1T1R Single-band WLAN module. It compatible IEEE 802.11 b/g/n standard and provides the maximum PHY rate up to 72.2Mbps, offering feature-rich wireless connectivity and delivering reliable, giving end users the highest cost performance.

Features

• Operating Frequencies: 2.4~2.484GHz
• Host Interface is USB 2.0
• IEEE Standards: IEEE 802.11b/g/n
• Wireless PHY rate can reach up to 72.2Mbps
• Connect to the external antenna through MHF1/IPEX connector
• DC 3.3V±0.2V single power supply

  Block Diagram



  General Specifications

  Module Name	BL-M8188FU3 (VQ1)
  Chipset	RTL8188FTV-VQ1-CG
  WLAN Standards	IEEE 802.11b/g/n
  Host Interface	USB 2.0
  Antenna	Connect to the external antenna through MHF1/IPEX connector
  Dimension	13*12.3*2.1mm (L*W*H)
  Power Supply	DC 3.3V ±0.2V @ 500mA (Max)
  Operation Temperature	-20℃ to +70℃
  Operation Humidity	10% to 95% RH (Non-Condensing)

  Product Dimension

  Module dimension: 13.0*12.3*2.1mm (L*W*H; Tolerance: ±0.15mm)

  IPEX / MHF-1 connector dimension: 3.0*2.6*1.25mm (L*W*H; Ø2.0mm)
