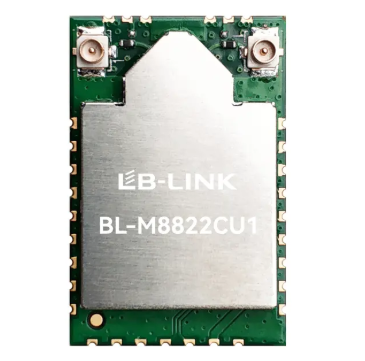

- BL-M8822CU1
- LB-LINK
- V5.0
- REALTEK
- 2T2R
- USB2.0 Interface
BL-M8822CU1 is a highly integrated Dual-band WLAN + Bluetooth v5.0 Combo module. It combines a 2T2R Dual-band WLAN subsystem and a Bluetooth v5.0 subsystem. This module compatible with IEEE 802.11a/b/g/n/ac standard and provides the maximum PHY rate up to 867Mbps, it supports BT / BLE dual mode, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance.
Features
- Operating Frequency: 2.4~2.4835GHz or 5.15~5.85GHz
- Support Dual-band 2T2R mode with 20/40/80Mhz bandwidth
- Wireless PHY rate can reach up to 867Mbps
- Support BT Classic / BT Low Energy dual mode
- Support Bluetooth v5.0 system
- Connect to external antennas through Half hole pads
Block Diagram
General Specifications

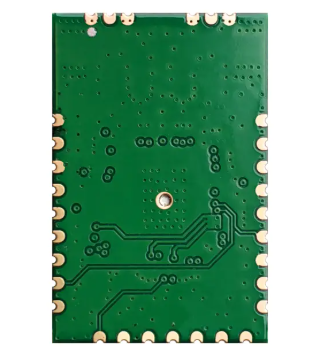

Product Dimension
Module dimension: 27.0*17.8*3.0mm(L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H)
IPEX / MHF-1 connector dimension: 3.0*2.6*1.2mm (L*W*H, Ø2.0mm)
