Details

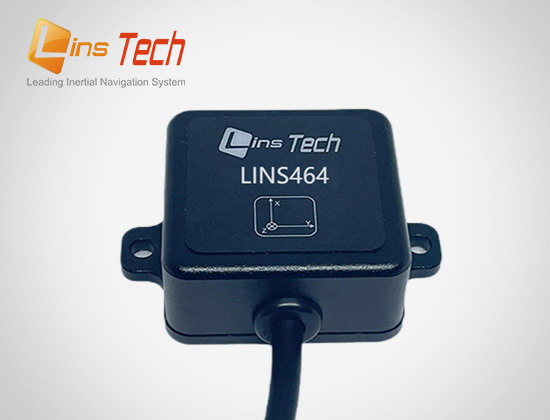

LINS464 high performance inertial measurement unit is a durable industrial inertial navigation system with 6-axis output, acceleration, angular speed output frequency of 200 HZ. LINS464 MEMS based accelerometer and gyroscope to provide customers with cost-effective solutions.
LINS464 inertial measurement unit is small in size, light in weight, using ultra-durable, compact aluminum alloy shell, has high reliability in harsh environment, has been widely used in unmanned aircraft and ROVs, unmanned aircraft, intelligent agriculture, mechanical control and other dynamic control system and attitude system, platform stability, AGV, robot, etc.
Main features:
√ Products design aimed for high reliability ，Effective researching and development for adaptiveness.
√ Specialized manufacturing equipment and devices, Rigorous procedure and quality assurance.
√ Dedicated to deliver high quality products to our clients.
√ Years of experiences in perfecting our products , positive feedback from over a thousand users.
√ Cutting-Edge calibration technology,fast and professional customer support.
√ Prioritize in providing satisfactory services.
▪ Three-axial gyroscope range ± 500°/s
▪ Three-axis accelerometer with range ± 4g
▪ Output frequency: 200-1000Hz
▪ Waterproof grade: IP67
▪ RS-232 communication interface
▪ Small size: 36 * 35 * 18mm
▪ Light weight: <40g
▪ Operating temperature: -40°C ~ +85°C
Typical applications:
Product indicators：
| Technical Index | Design accuracy | Remark | |
| Gyroscope | Accelerometer | ||
| IMU Parameter | |||
| • Dynamic measuring range: X, Y, Z | ±500°/s | ±4g | |
| • Zero bias instability | 1.5°/h | 10μg | Allan variance |
| • Random walk | 0.08°/√ h | 0.06m/s/√ h | |
| • Scale factor nonlinearity | 300ppm | 300ppm | |
| • Alignment error | 300ppm | 300ppm | |
| • Bandwidth | 200Hz | ||
| • Output Data Rate | 200Hz | Maximum： 1000Hz | |
| Attitude Measurement | |||
| • Roll angle range | ±180° | ||
| • Pitch angle range | ±90° | ||
| • Heading angle range | ±180° | ||
| • Dynamic accuracy | 0.3° | ||
| • Resolution | 0.01° | ||
| Electrical characteristics | |||
| • Voltage | 5VDC ~ 30VDC | ||
| • Power consumption | 0.15W | ||
| • Communication interface | RS232 | 115200~921600 bps configurable | |
| Structural characteristics | |||
| • Size | 36 * 35 * 18mm | ||
| • Weight | 40g | Excluding wires | |
| Use environment | |||
| • Operating temperature | -40°C ~ +85°C | ||
| • Storage temperature | -55°C ~ +105°C | ||
