Details

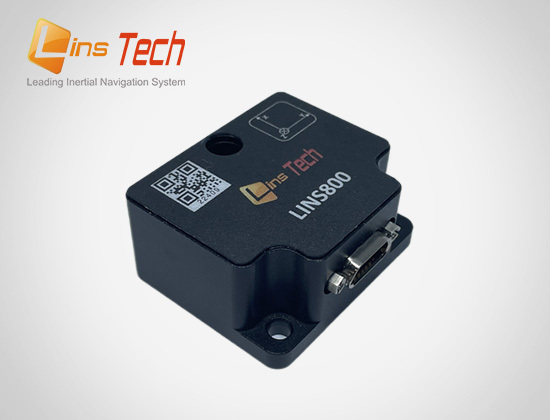

IMU Based on MEMS technology, LINS800 using advanced signal processing, A / D conversion, digital filter, temperature compensation and turntable inertia calibration, and then output accurate 3-axis acceleration and 3-axis angular rate data.
LINS800 IMU has passed the most stringent test, in the noise, bias stability, nonlinearity, reproducibility, temperature drift, shock shock and other aspects of excellent performance. LINS800 is ideal for autonomous cars, driverless taxis / delivery trucks, ADAS systems, electronic stability control systems, and lane keeping assistance systems.
Main features:
√ Products design aimed for high reliability ，Effective researching and development for adaptiveness.
√ Specialized manufacturing equipment and devices, Rigorous procedure and quality assurance.
√ Dedicated to deliver high quality products to our clients.
√ Years of experiences in perfecting our products , positive feedback from over a thousand users.
√ Cutting-Edge calibration technology,fast and professional customer support.
√ Prioritize in providing satisfactory services.
▪ High-precision MEMS with 3-axis
accelerometer and 3-axis gyroscope
▪ Range: Accelerometer ± 20g Gyroscope ± 400°/s
▪ Communication interface: RS422
▪ Output Data rate: 200Hz (up to 1000Hz)
▪ Wide temperature range: -40℃ ~ +85℃
▪ Small size: 39 * 47 * 21mm
Typical applications:
Product indicators：
| Technical Index | Design accuracy | Remark | |
| Gyroscope | Accelerometer | ||
| IMU Parameter | |||
| • Dynamic measuring range: X, Y, Z | ±400°/s | ±20g | |
| • Zero bias | 20°/h | 2mg | |
| • Zero bias instability | 0.5°/h | 20μg | Allan variance |
| • Random walk | 0.15°/√h | 0.04m/s/√h | |
| • Zero bias stability | 1°/h | 0.2mg | 10s average （25℃ , Room temperature） |
| • Zero bias repeatability (sequential) | 2°/h | 0.2mg | |
| • Zero bias over full temperature | 30°/h | 2mg | （-40°C\+85°C） |
| • Zero bias stability over full temperature | 3°/h | 0.2mg | 10s average（-40℃\+85℃) |
| • Scale factor nonlinearity | 100ppm | 100ppm | |
| • Alignment error | 200ppm | 200ppm | |
| • Bandwidth | 200Hz | ||
| • Output data rate | 200Hz | Maximum： 1000Hz | |
| Electrical characteristics | |||
| • Voltage | 5V DC | ||
| • Power consumption | 1W | ||
| • Communication interface | RS422 | 115200~921600 bps configurable | |
| Structural characteristics | |||
| • Size | 39 * 47 * 21mm | ||
| • Weight | 55g | ||
| Use environment | |||
| • Operating temperature | -40°C~ +85°C | ||
| • Storage temperature | -55°C~ +125°C | ||
| • Vibration | 6.06g（ 20-2000Hz） | ||
| • Impact | 15g/30ms | ||
