Details

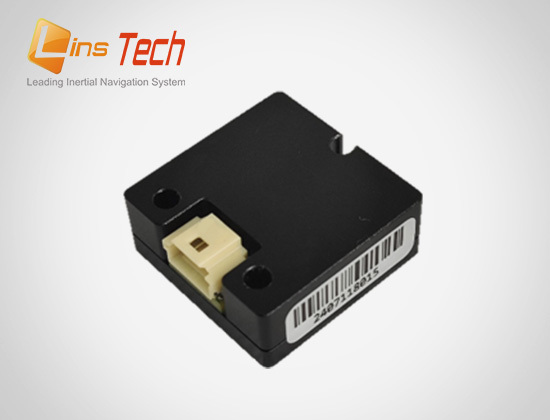

LINS313 High performance inertial measurement unit is a durable industrial inertial navigation system with 6-axis output, acceleration, angular speed output frequency of 200 HZ. LINS313 MEMS based accelerometer and gyroscope to provide customers with cost-effective solutions.
LINS313 Inertial measurement unit is small size, light weight, using super durable, compact aluminum alloy shell, has high reliability, has been widely used in unmanned aircraft and ROVs, unmanned aircraft,intelligent agriculture, mechanical control dynamic control system and attitude system, platform stability, AGV, robot and other fields.
Main features:
√Products design aimed for high reliability ，Effective researching and development for adaptiveness.
√ Specialized manufacturing equipment and devices, Rigorous procedure and quality assurance.
√ Dedicated to deliver high quality products to our clients.
√ Years of experiences in perfecting our products , positive feedback from over a thousand users.
√ Cutting-Edge calibration technology,fast and professional customer support.
√ Prioritize in providing satisfactory services.
▪ Precision-calibrated 6-axis inertial system
▪ 3-axis gyroscope 3-axis accelerometer output
▪ Data output rate: 200-1000Hz
▪ Range: Gyroscope ± 500°/s Accelerometer ± 16g
▪ Small in size: 22.4 * 22.4 * 9.0 mm
▪ Light weight: <10g
▪ Operating temperature: -40°C ~ +85°C
Typical applications:
Product indicators：
| Technical Index | Design accuracy | Remark | |
| Gyroscope | Accelerometer | ||
| IMU Parameter | |||
| • Dynamic measuring range: X, Y, Z | ±500°/s | ±16g | |
| • Zero bias instability | 2°/h | 20ug | Allan variance |
| • Random walk | 0.15°/√ h | 0.025m/s/√ h | |
| • Zero bias stability | 10°/h | / | 10s average （25℃ , Room temperature） |
| • Scale factor nonlinearity | 100ppm | 100ppm | |
| • Alignment error | 100ppm | 100ppm | |
| • Bandwidth | 200Hz | ||
| • Output data rate | 200Hz | Maximum： 1000Hz | |
| Electrical characteristics | |||
| • Voltage | 5 VDC | ||
| • Power consumption | 0.5 W | ||
| • Communication interface | LVTTL | 115200~921600 bps configurable | |
| Structural characteristics | |||
| • Size | 22.4 * 22.4 * 9mm | ||
| • Weight | < 10g | ||
| Use environment | |||
| • Operating temperature | -40°C ~ +80°C | ||
| • Storage temperature | -40°C ~ +85°C | ||
| • Vibration | 6.06g（ 20-2000Hz） | ||
| • Impact | 1000g / 0.5ms | ||
