Details

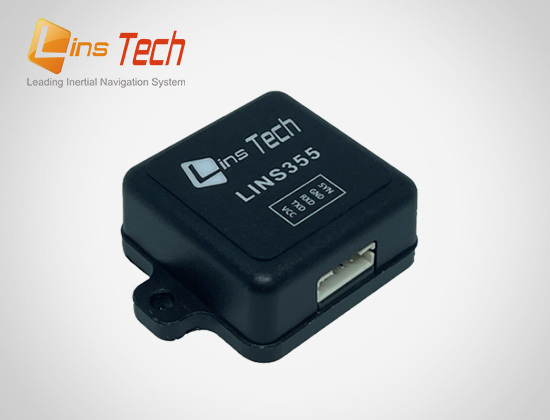

LINS 355 high-performance inertial measurement unit is a durable industrial-class, inertial navigation system with nine-axis output, including three axis acceleration, three axis angular speed and three axis magnetometer, while providing attitude output, output frequency of 200Hz.
LINS 355 inertial measurement unit is small in size, light in weight, uses an ultra-durable, compact aluminum alloy housing, and still has high reliability in harsh environments. The product uses MEMS based accelerometer and gyroscope to provide customers with ultra-cost-effective solutions.
Main features:
√Products design aimed for high reliability ，Effective researching and development for adaptiveness.
√ Specialized manufacturing equipment and devices, Rigorous procedure and quality assurance.
√ Dedicated to deliver high quality products to our clients.
√ Years of experiences in perfecting our products , positive feedback from over a thousand users.
√ Cutting-Edge calibration technology,fast and professional customer support.
√ Prioritize in providing satisfactory services.
▪ High-precision MEMS triaxial accelerometer, gyroscope and magnetometer
▪ Data output rate: 200Hz
▪ Range: Gyroscope ± 400°/s
Accelerometer ± 8g
Magnetometer ± 8Gauss
▪ Interface support: RS232
▪ Dimensions: 36 * 36 * 16mm
▪ Weight: <25g
▪ Operating temperature: -40°C ~ +85°C
Typical applications:
Product indicators：
| Technical Index | Design accuracy | Remark | |
| Gyroscope | Accelerometer | ||
| IMU Parameter | |||
| • Dynamic measuring range: X, Y, Z | ±400°/s | ±8g | |
| • Zero bias instability | 4°/h | 30μg | Allan variance |
| • Random walk | 0.3°/√ h | 0.07m/s/√ h | |
| • Scale factor nonlinearity | 200ppm | 200ppm | |
| • Alignment error | 200ppm | 200ppm | |
| • Bandwidth | 40Hz | Maximum： 500Hz | |
| • Output Data Rate | 200Hz | ||
| Attitude Measurement | |||
| • Roll angle range | ±180° | ||
| • Pitch angle range | ±90° | ||
| • Heading angle range | ±180° | ||
| • Dynamic accuracy | 0.5° | ||
| • Resolution | 0.01° | ||
| Magnetometer | |||
| • Range: X, Y, Z | ±8Gauss | ||
| • Resolution | 0.2mG | ||
| • Nonlinear accuracy | 0.1%FS | ||
| Electrical characteristics | |||
| • Voltage | 5VDC ~ 30VDC | ||
| • Power consumption | 0.2W | ||
| • Communication interface | RS232 | 115200~921600 bps configurable | |
| Structural characteristics | |||
| • Size | 36 * 36 * 16mm | ||
| • Weight | 25g | ||
| Use environment | |||
| • Operating temperature | -40°C ~ +85°C | ||
| • Storage temperature | -55°C ~ +105°C | ||
