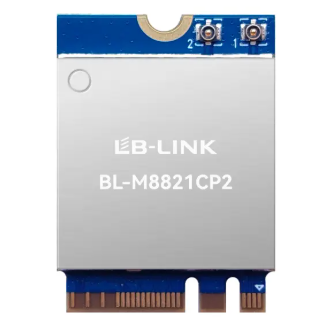

- BL-M8821CP2
- LB-LINK
- V5.0
- REALTEK
- 1T1R
- Wi-Fi:PCIe BT:USB
Introduction
BL-M8821CP2 is a highly integrated Dual-band WLAN+Bluetooth Combo M.2 Card. It combines a 1T1R Dual-band WLAN subsystem with PCI Express interface controllers and a B v5.0 subsystem with USB interface controller. This card compatible IEEE 802.11a/b/g/n/ac standard and provides the maximum PHY rate up to 433Mbps, it supports B dual mode with v5.0/v4.2/v2.1 compliant. The card provides a complete solution for high-performance integrated wireless and B devices such as laptops, set-top boxes, smart TVs, etc.
Features
- Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz
- IEEE Standards: IEEE 802.11a/b/g/n/ac
- Form factor: M.2 2230 generic A key or E key
- Wireless PHY rate can reach up to 433Mbps
- Connect to external antenna through MHF4 connectors
- Power Supply: DC3.3V±0.2V power supply
Block Diagram
General Specifications
Product Dimension
Card dimension: 30.0*22.0*2.15mm (L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H)
IPEX / MHF-4 connector dimension: 2.0*2.0*0.6mm (L*W*H, Ø1.5mm)
