Details

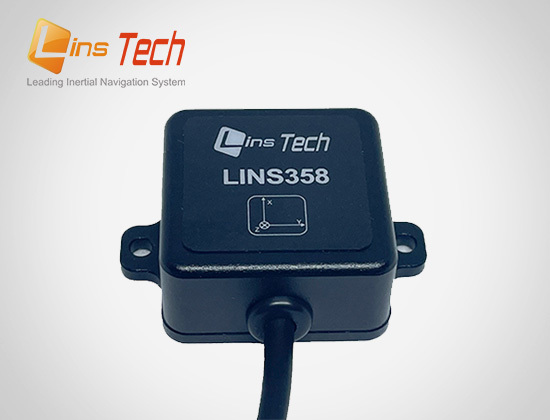

LINS 358 high-performance inertial measurement unit is a durable industrial inertial navigation system, with triaxial acceleration, triaxial angular speed, and attitude output, output frequency of 200Hz.
LINS 358 Inertial measurement unit is small in size, light in weight, using ultra-durable, compact aluminum alloy shell, still has high reliability in harsh environment, has been widely used in unmanned aircraft, ROVs, intelligent agriculture, mechanical control and other dynamic control and attitude system, platform stability, AGV, robot and other industries. The product uses MEMS based accelerometer and gyroscope to provide customers with ultra-cost-effective solutions.
Main features:
√Products design aimed for high reliability ，Effective researching and development for adaptiveness.
√ Specialized manufacturing equipment and devices, Rigorous procedure and quality assurance.
√ Dedicated to deliver high quality products to our clients.
√ Years of experiences in perfecting our products , positive feedback from over a thousand users.
√ Cutting-Edge calibration technology,fast and professional customer support.
√ Prioritize in providing satisfactory services.
▪ High-precision six-axis inertial measurement unit
▪ Data output rate: 200-1000Hz
▪ Range: gyroscope ± 400°/s, accelerometer ± 6g
▪ Safety protection level: IP67
▪ Dimensions: 36 * 35 * 18mm( Excluding installation flange)
▪ Weight: <40 g ( Excluding wires)
▪ Communication interface support: RS232 / RS422 / RS485 / CAN
▪ Operating temperature: -40°C~ +85°C
Typical applications:
Product indicators：
| Technical Index | Design accuracy | Remark | |
| Gyroscope | Accelerometer | ||
| IMU Parameter | |||
| • Dynamic measuring range: X, Y, Z | ±400°/s | ±6g | |
| • Zero bias instability | 4°/h | 30μg | Allan variance |
| • Random walk | 0.5°/√ h | 0.07m/s/√ h | |
| • Scale factor nonlinearity | 200ppm | 200ppm | |
| • Alignment error | 200ppm | 200ppm | |
| • Bandwidth | 40Hz | Maximum G： 116Hz ，A： 240Hz |
|
| • Output Data Rate | 200Hz | Maximum： 1000Hz | |
| Attitude Measurement | |||
| • Roll angle range | ±180° | ||
| • Pitch angle range | ±90° | ||
| • Heading angle range | ±180° | ||
| • Dynamic accuracy | 0.5° | ||
| • Resolution | 0.01° | ||
| Electrical characteristics | |||
| • Voltage | 5VDC ~ 30VDC | ||
| • Power consumption | 0.3W | ||
| • Communication interface | RS232/RS422/RS485/CAN | 115200~921600 bps configurable | |
| Structural characteristics | |||
| • Size | 36 * 35 * 18mm | Excluding installation flange | |
| • Weight | 40g | Excluding wires | |
| Use environment | |||
| • Operating temperature | -40°C ~ +85°C | ||
| • Storage temperature | -55°C ~ +105°C | ||
