- BL-M7663BU4
- LB-LINK
- V5.1
- MTDIATEK
- 2T2R
- USB2.0 Interface
- Wi-Fi 5 (802.11ac)

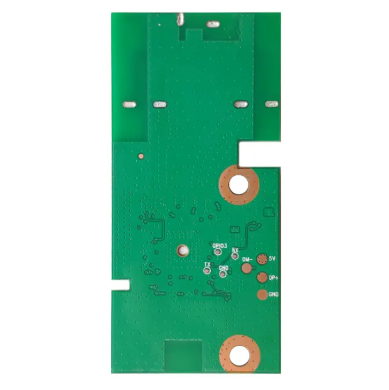

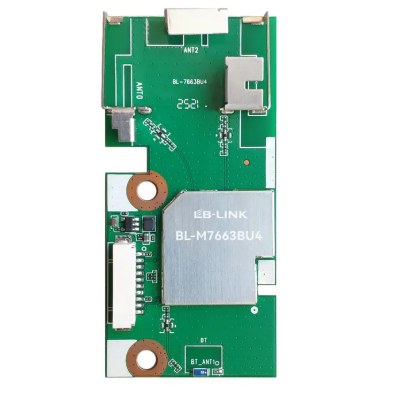

BL-M7663BU4 is a highly integrated Dual-band WLAN + Bluetooth v5.1 Combo module. It combines a 2T2R Dual-band WLAN subsystem and a Bluetooth v5.1 subsystem. This module compatible with IEEE 802.11a/b/g/n/ac standard and provides the maximum PHY rate up to 867Mbps, it supports BR/EDR and BLE dual mode , offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance.
Features
- Operating Frequencies: 2.4~2.4835GHz and 5.15~5.85GHz
- Host Interface is USB2.0
- IEEE Standards: IEEE 802.11a/b/g/n/ac
- Wireless PHY rate can reach up to 867Mbps
- Supports Bluetooth v5.1 system
- Module built-in antennas
- Power Supply: DC 5V±0.3V
General Specifications
Product Dimension
Module dimension: 70.0*33.0*6.0mm (L*W*H; Tolerance: ±0.15mm)
