1. Product Introduction
1.1 Features
- Suitable for linear and saturation applications
- Pout=30W, CW
- Freq Range：0.6-6.0GHz
- Typical VDS：28 V
- Negative Gate Voltage and Bias Sequencing Required
- Excellent Thermal Stability and Excellent Ruggedness
- 100% RF tested
- RoHS
1.2 Description

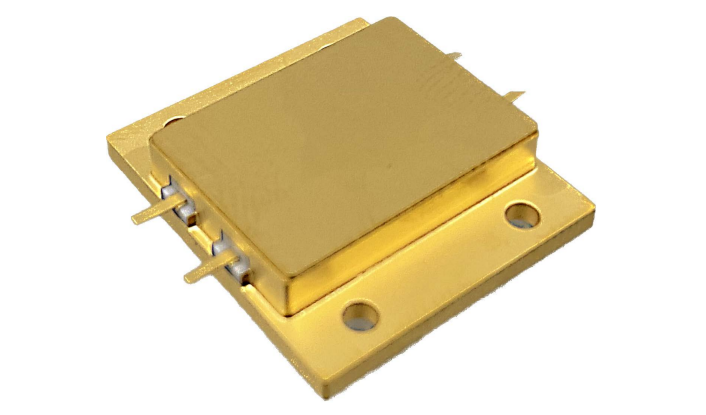

YPM06601030M is a 80-watt, internally 50ohm matched GaN HEMT, designed specifically with high efficiency, high stability and wide bandwidth capabilities, which makes the YPM06601030M ideal for 600MHz~6000MHz, CW amplifier applications.
1.3 Typical Performance1,2
2. Maximum Ratings
3.Thermal Characteristics
4. Electrical Characteristics （TA = 25℃）
4.1 DC Characteristics
4.2 RF Characteristics （Typical1）
4.3 Load Mismatch
5. Packaging Diagram
